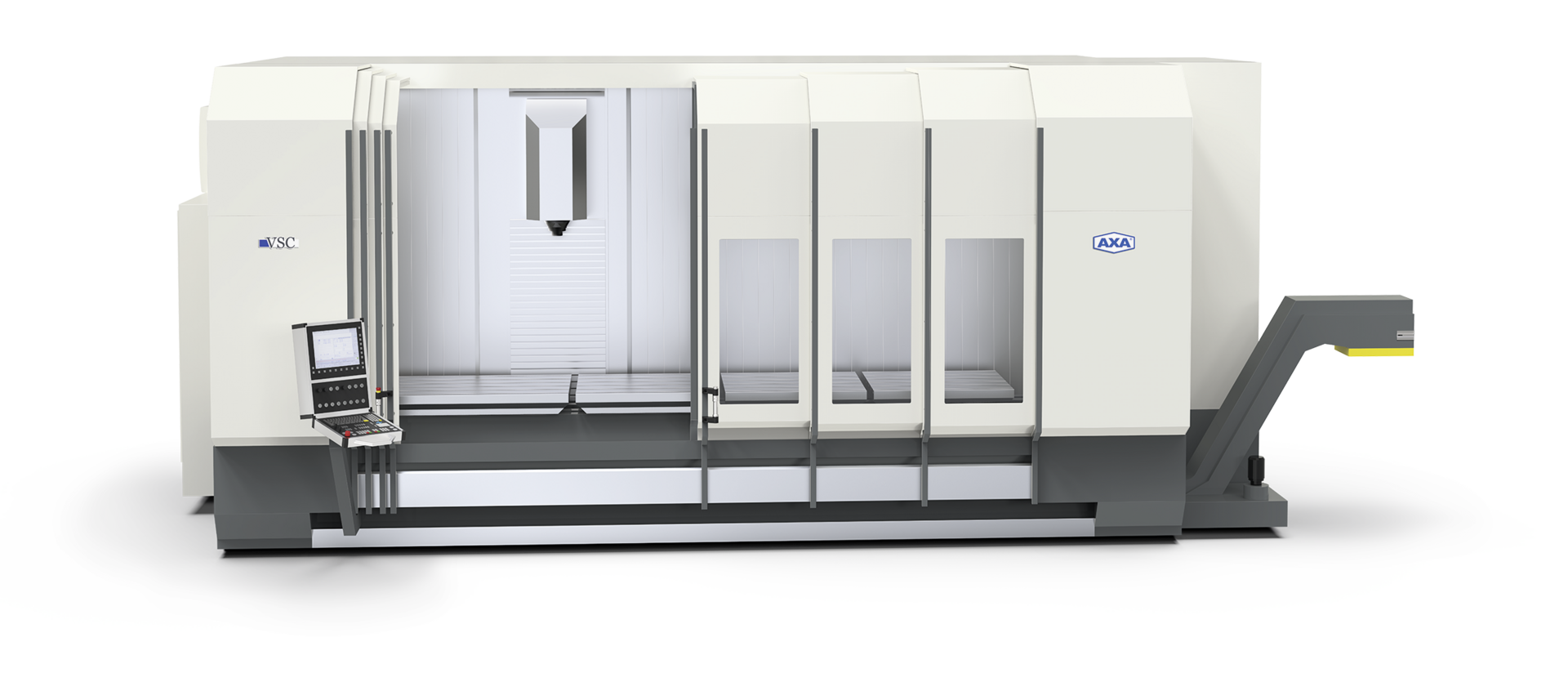

VSC 1-1760 XTS
Construction year 2025, no. 278
| No. 278 - VSC 1-1760 XTS | |
| CNC-system | Siemens 840 Dsl |
| Traverse ranges X/Y/Z | 1760 / 550 / 600 [mm] |
| Power rapide traverse X/Y/Z | 30 / 30 / 25 [m/min] |
| Clumping surface approx. | 2400 x 600 [mm] |
| Speed range | 30 - 10.000 [rpm] |
| Main drive | max. 30 [kW] (bei 40% DC), drive no. 110 |
| Spindle torque | 143 [Nm] (with 40% DC) |
| Spindle taper | SK 40, DIN ISO 7388-1 |
| Tool storage capacity | XTS tool magazine with 36 tools (expandable up to 72 places) |
| External cooling | Ring with 6 adjustable cooling nozzles |
| Through spindle coolant | up to 30 bar - external container 600 l |
| Chip conveyor | discharge side right (optional left), discharge height 1000 mm |
| Covering | Working space encapsulation |
| Colour coating | light grey / slate grey (RAL 7035 / 7015) |
| Additional features |
|
Modifications reserved, subject to prior sale
